The Fox in the Distance

The fox can walk behind things now, but she’s exactly the same size at the back of the playground as at the front. Depth cues come in pairs — occlusion says behind, size says far — and the game only had one of them. This post is the second slice of the depth plan (DEPTH_AND_CAMERA.md): the fox reads as nearer or farther by switching between separately drawn sprite sets as she moves up and down the scene.

Why not just scale the sprite

The classic answer is render-time scaling — SCUMM games computed a scale factor from the actor’s y and drew the one sprite set smaller toward the horizon. Smooth, and free for the artist. We ruled it out anyway: scaled sprites lose the hand-drawn crispness this game’s art depends on, and edges fringe under interpolation. The art in VaniaVolpe is drawn at exact sizes and should stay exactly as drawn.

So the spec chose the discrete version: a scene divides its floor into 1–3 horizontal bands, and the actor carries a full sprite set — a variant — per band, each authored at the right size. The engine’s job collapses to “pick the set by where her feet are,” which is trivial; the honest costs are that art effort multiplies per variant, and that there’s a visible pop at the band boundary. The first cost is deferred with placeholders (more below); the second is managed by putting boundaries where players cross quickly, and it shrinks further once walk-behind planes can hide them.

Variants in the actor

An ActorSpec now carries a list of sprite sets instead of one:

1
2
3
4
5
typedef struct actor_variant_spec {
  const ActorAnimSpec *anims;
  int anims_length;
  float speed_scale; // 1.0 = spec velocity; far variants use < 1.0
} ActorVariantSpec;

The generic actor’s animation table becomes two-dimensional — animations[variant][state] — and every lookup goes through the active variant. The fox and the hen wrap their existing tables in a one-element variants array, which is the whole migration: one variant, speed_scale = 1.0, zero behaviour change. A validation pass insists every variant provides the same set of states as variant 0, checked loudly before any file loads, so a missing far-walking sheet fails the game’s startup instead of crashing mid-stride.

speed_scale is the second half of the illusion. A far fox drawn at 60% size that still covers 200 pixels per second looks like she’s skating; scaling the walk speed with the sprite keeps her apparent speed natural.

The switch you shouldn’t see

All the care in this phase is concentrated in one function:

1
void actor_set_variant(Actor *actor, int variant);

The naive version — stop the old walking animation, start the new one — pops twice: the walk cycle restarts from frame zero, and stopping an animation fires its end callback, which for a walk means “arrive,” from the wrong place. Instead the new variant’s current-state animation inherits the old one’s start time, frame and facing, and the old one is silenced directly without going through the callback machinery. Mid-stride stays mid-stride; the only thing that changes on screen is the artwork. A unit test pins exactly this: switch during a walk and assert the timing, frame and facing survive while nothing else fires.

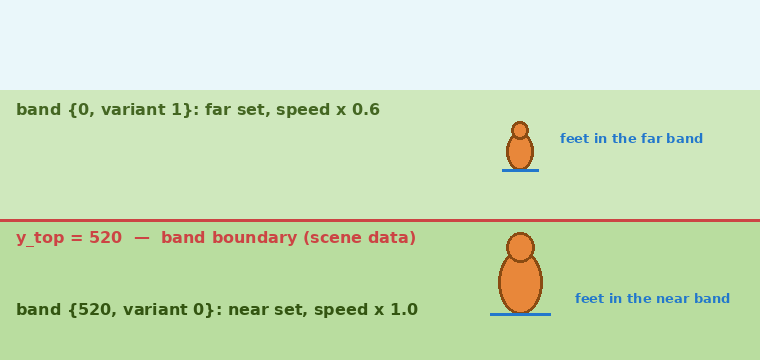

Bands belong to scenes

Where the switches happen is deliberately not actor data. Different scenes have different floors — a shallow poolside strip, a deep playground lawn — so each scene declares its own band table and maps its own geometry onto the actor’s variants:

1
2
3
typedef struct depth_band { int y_top; int variant; } DepthBand;

static const DepthBand BANDS[] = {{0, 1}, {520, 0}};

Opting in is one line in the scene’s update, feeding actor_feet_y into the band lookup:

1
2
actor_set_variant(fox, depth_variant_for(BANDS, LEN(BANDS),
                                         actor_feet_y(fox)));

Scenes that never call it stay on variant 0 forever — which is every shipped scene today, because the far-art doesn’t exist yet.

Placeholders until the art exists

That “doesn’t exist yet” is the same problem the en_US locale had — the system is ready before the assets are — and it gets the same answer: generated placeholders, replaced file-for-file later. A new script, tools/gen_depth_variants.py, crops each frame of a variant-0 sheet by its .anim, downscales it nearest-neighbour (no interpolation fringing), and repacks the usual vertical strip with a matching .anim, ready to slot into a variant spec.

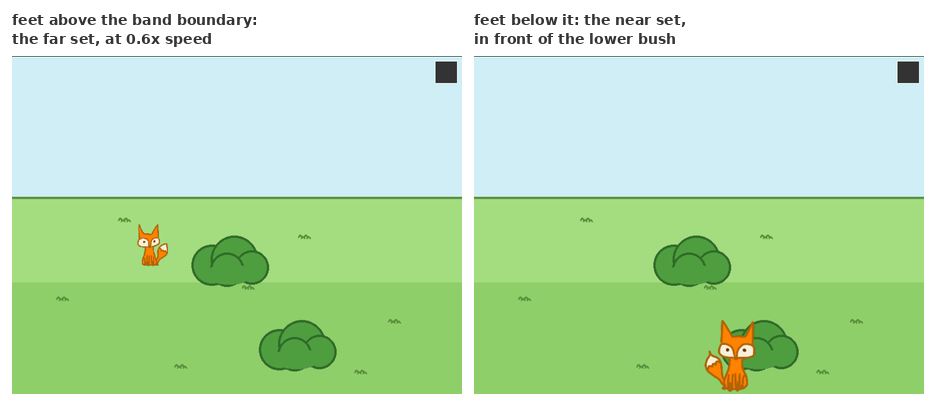

And because a feature like this deserves somewhere to be seen, the repo gained a third adventure: a one-scene developer demo (“Demo: Depth & Props” on the menu) that is also the reference implementation to copy from. A field, two bushes, a two-variant fox — the bushes are Phase 1 props, two bands split the lawn where its tone changes, and the far set is a committed output of the generator. Click around it and both features are on screen at once; that’s where the screenshots at the top come from. The real adventures are untouched until their far art is drawn (the whole suite, now at 83 checks, plays through Gina’s story with the extra menu button present to prove it).

Next on this thread is the biggest slice: scenes wider than the window, with a camera that follows the fox and the scene/screen coordinate split made real. After that, parallax. The fox, meanwhile, knows how to be far away — there’s a field where you can watch her do it.
