Walking Behind Things

Since the fox learned to walk around things, one flatness kept bothering me: she is always in front of everything. Every scene’s render function ended with the same line — draw the background, draw the objects, draw the fox last — so she floats over the acorn pile even when she’s clearly standing behind it. The world reads as a painted backdrop with a sticker on top. This post is about the smallest change that makes it read as a place instead: a y-sorted action layer, the first slice of a larger depth and camera plan.

One spec, four slices

Depth is one of three features that turned out to share a single foundation. The plan (drafted with Claude, like the pathfinding and lip-sync ones, and committed as DEPTH_AND_CAMERA.md) covers a simulated z-axis, scenes wider than the 800×600 window with a camera that follows the player, and parallax planes — and all three reduce to being careful about one distinction: screen coordinates versus scene coordinates.

The spec splits into four phases, each an independent PR that leaves the game working, and deliberately front-loads the ones that need no new art. Phase 1 is this post: props the actor can stand behind and in front of. No camera, no new sprites, no scene data migrations — every scene that doesn’t opt in renders exactly as before.

The painter and the ground line

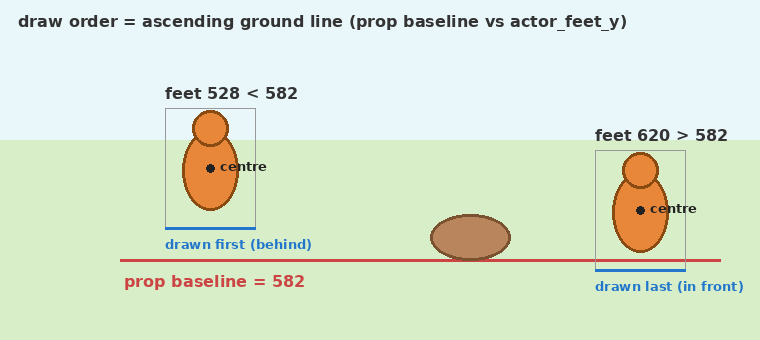

The trick is as old as 2D adventure games: sort everything standing on the ground by where it touches the ground, and draw back-to-front. Whoever’s contact line is lower on the screen is nearer the viewer and gets drawn later.

The engine had neither of the two numbers this needs. For the actor, the awkward truth is that current_position — the point all the walk data is authored against — is the sprite’s centre, not her feet. I didn’t want to migrate every position in every scene to a feet convention, so the two conventions now coexist behind one explicit helper:

1
2
3
// Scene y of the actor's ground-contact point. current_position is the
// sprite *centre*; y-sorting and depth bands need the feet instead.
float actor_feet_y(const Actor *actor);

For props, there is a new type. A Prop doesn’t own an image — it points into the scene’s existing image and animation tables, so loading and teardown don’t change at all. What it adds is the ground line, and a visibility flag the scene toggles:

1
2
3
4
5
6
7
typedef struct prop {
  ImageData *image;         // exactly one of image / animation is non-NULL
  AnimationData *animation;
  SDL_Point pos;            // top-left, scene coordinates
  int baseline;             // scene y of the ground-contact line
  bool visible;             // scenes toggle this (e.g. a picked-up item)
} Prop;

The scene then replaces its hand-ordered “props, then the fox last” block with one call:

1
render_action_layer(renderer, props, LEN(props), (Actor *[]){fox}, 1);

which sorts visible props (by baseline) and actors (by actor_feet_y) ascending and draws them in that order. It’s a stable insertion sort over at most sixteen entries — a dozen comparisons per frame, not a data structure. Stability is doing quiet work there: on a tie, whoever was inserted first draws first, so props deliberately go in before actors and an actor standing exactly on a prop’s ground line reads as in front of it. The sort itself lives in its own function, action_layer_order(), purely so the unit tests can assert draw orders — including that tie — without ever creating a renderer.

A demo with zero new art

The playground already had the perfect test subjects. When the squirrel shakes the acorns loose they land on the ground as a little pile, and the peg she trades them for lies on the grass until the fox picks it up. Both used to be lines in the render function’s state-dependent if ladder; both are now props whose visible flag mirrors the same conditions, one assignment per frame:

1
2
acorn_pile_prop->visible =
    have_acorns_fallen && !has_acorns && !has_peg_been_dropped;

Everything else — the acorns still in the tree, the peg on the squirrel’s branch, the carried items, the peg fixed into the slide — never overlaps the fox on the ground, so those stay ordinary draws above the action layer. The baselines aren’t even authored numbers: each prop’s ground line is its sprite’s bottom edge, computed from the image height once the scene becomes active.

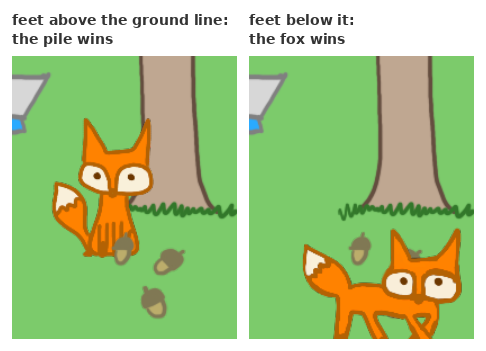

The screenshots at the top come from a scripted browser playthrough — dig up the key, open the gate, shake the acorns down, then walk the fox to either side of the pile — and the feet math and orderings are pinned by unit tests alongside it: behind, between, in front, the prop-first tie rule, and that invisible props stay out of the sort entirely.

What this sets up

The next slices of the spec lean on this one. Depth bands (Phase 2) will switch the actor between separately drawn sprite sets as her feet cross scene thresholds — same feet helper, new art. The camera (Phase 3) makes the scene/screen split real, with scenes wider than the window and input converted centrally so scene code never sees camera math. And parallax planes (Phase 4) add a cheaper walk-behind for things the fox never stands in front of: a foreground strip that just draws after everything. The pile of acorns, for now, is the deepest thing in the game.
